OB3-80+ 3el / 80m Yagi (SSB+CW)

OPTIBEAM OB3-80+

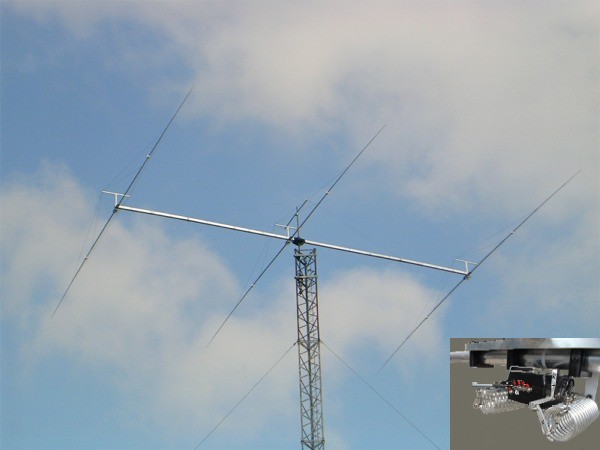

OB3-80+   3 Element Yagi 80m (SSB+CW)

Bands   80
Gain (dBd) *   4.85
Gain (dBi) **   11.25
F/B (dB)   21
VSWR (with the OptiBeam multi switch):
SSB 1: 3,770 - 3,795 - 3,830   2,0 - 1,1 - 2,0
SSB 2: 3,720 - 3,745 - 3,790   2,0 - 1,1 - 2,0
SSB 3: 3,680 - 3,705 - 3,750   2,0 - 1,1 - 2,0
CW: 3,500 - 3,520 - 3,565   1,7 - 1,2 - 2,0

Elements (number)   3
Max. Elementlenght (m)   23
Boomlenght (m)   20
Turning Radius (m)   15.6
Feedlines (number)   1 Coax 50 Ohm
Weight (kg)   210
Windload at 130 km/h   2.434 N / 3,05 m² / 33,1 feet²

Price incl. 5 KW 1:2 balun and
multi switch system ***   7.799,00 EUR

Price "plain SSB version
incl.high quality 5 KW 1:2 balun ***   6.549,00 EUR
* = average gain over dipol in free-space / for comparison: 2 el monobander 4 dBd, 3 el 5-6 dBd
** = average gain at 20m above ground (= dBd + 2.15 dB isotropic + about 5 dB ground reflection)
*** = outside EU minus 19% tax - subject to change
