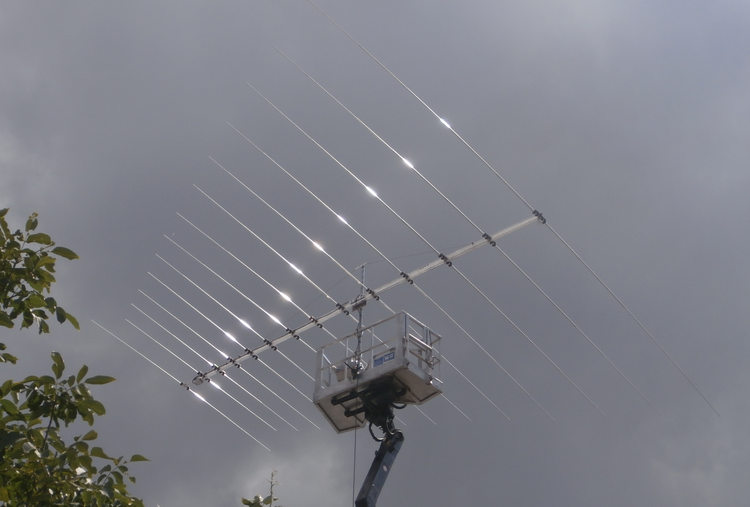

OBLY14-5 14 Element Log Yagi 20-17-15-12-10m

OBLY14-5
OBLY14-5   14 Element Log Yagi 20-17-15-12-10m

Bands   20 / 17 / 15 / 12 / 10
Gain (dBd) *   4,8 / 4,9 / 4,9 / 5,0 / 5,1
Gain (dBi) **   12,1 / 12,5 / 12,6 / 12,7 / 12,9

Practical performance
(due to active radiation area)
  20-12m:    3el Monoband-Yagi
10m:         3.5el Monoband-Yagi

F/B (dB)   24 / 22 / 22 / 22 / 24
SWR   All band ranges < 1.5

Elements (number)   14
Active elements   between 70 and 100% of the entire antenna area operative

Max. elementlength (m)   11,26
Boomlength (m)   7,50
Turning radius (m)   6,65
Feed lines (number)   1 Koax 50 Ohm
Weight (kg)   58
Windload at 130 km/h   1.272 N / 1,60 m2 / 17,20 feet2

Price ***   1.619,00 EUR

* = average gain over dipol in free-space / for comparison: 2 el monobander 4 dBd, 3 el 5-6 dBd
** = average gain at 20m above ground (= dBd + 2.15 dB isotropic + about 5 dB ground reflection)
*** = outside EU minus 19% tax - subject to change
