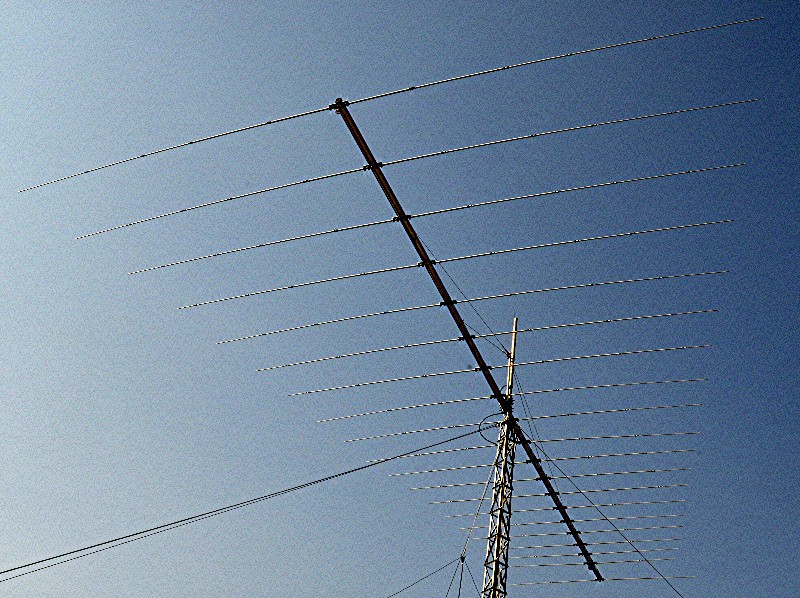

OBLY20-5 20 Element Log Yagi 20-17-15-12-10m

OBLY20-5
OBLY20-5   20 Element Log Yagi 20-17-15-12-10m

Bands   20 / 17 / 15 / 12 / 10
Gain (dBd) *   6,4 / 6,4 / 6,4 / 6,4 / 6,4
Gain (dBi) **   13,5 / 13,9 / 14,0 / 14,1 / 14,2

Practical performance
(due to active radiation area)
  like 4el monoband Yagi

F/B (dB)   40 / 45 / 45 / 33 / 30
SWR   all band ranges < 1.5

Elements (number)   20
Active elements

between 70 and 100% of the entire
antenna area operative


Max. element length (m)   11,36
Boom length (m)   15,00
Turning radius (m)   8,95
Feed lines (number)   1 Coax 50 Ohm
Weight (kg)   120
Windload at 130 km/h   1.988 N / 2,50 m2 / 26,81 feet2

Price ***   2.989,00 EUR






* = average gain over dipol in free-space / for comparison: 2 el monobander 4 dBd, 3 el 5-6 dBd
** = average gain at 20m above ground (= dBd + 2.15 dB isotropic + about 5 dB ground reflection)
*** = outside EU minus 19% tax - subject to change
