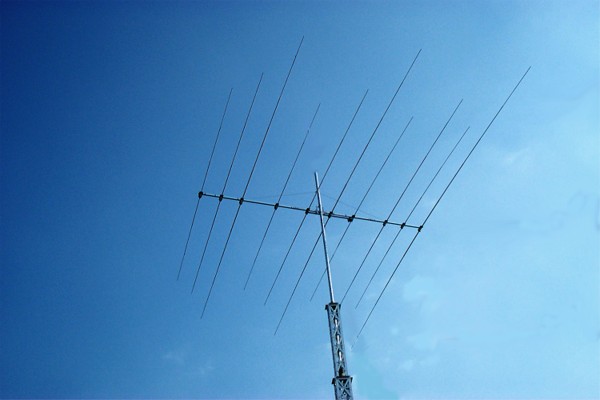

OB10-3W 10 Element 3 Band

OB10-3W   10 Element, 3 Band

Bands   20 / 17 / 15
Gain (dBd) *   5,3 / 5,3 / 6,5
Gain (dBi) **   12,7 / 12,7 / 14,2
F/B (dB)   25 / 26 / 24
VSWR
14,00 - 14,21 - 14,35   1,4 - 1,0 - 1,4
18,07 - 18,14 - 18,17   1,3 - 1,1 - 1,3
21,00 - 21,28 - 21,45   1,4 - 1,0 - 1,5

Elements (number)   10
Active Elements 20 / 17 / 15   3 / 3 / 4
Max. Elementlength (m)   11.1
Boomlength (m)   5.86
Turning Radius (m)   6.22
Feedlines (number)   1 Coax 50 Ohm
Weight (kg)   33
Windload at 130 km/h   700 N / 0,88 m² / 9,4 feet²

Price ***   1.469,00 EUR
* = average gain over dipol in free-space / for comparison: 2 el monobander 4 dBd, 3 el 5-6 dBd
** = average gain at 20m above ground (= dBd + 2.15 dB isotropic + about 5 dB ground reflection)
*** = outside EU minus 19% tax - subject to change
