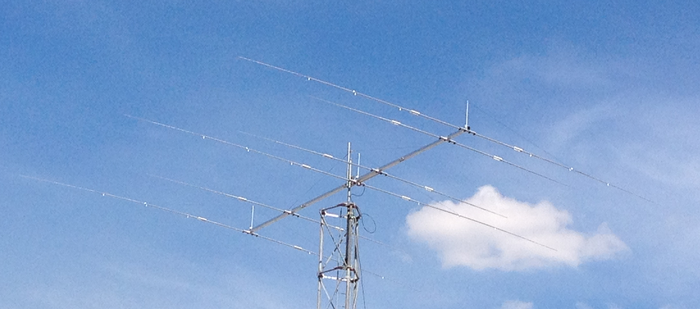

OB4030x 6 Element Yagi 40/30m

OB4030x   big 6 Element Yagi 40/30m

Bands   40 /30
Gain (dBd) *   4,6 / 4,7
Gain (dBi) **   11,3 / 11,9
F/B (dB)   22 / 27

VSWR
40 m general setting:
7,00 - 7,07 - 7,18   1,8 - 1,1 - 1,9
other specific setting s possible

10,100 - 10,125 - 10,150   1,3 - 1,2 - 1,3

Elements (number)   6
Active Elements   3 /3
Max. Elementlength (m)   14,74
Boomlength (m)   10.00
Turning Radius (m)   8.91
Feedlines (number)   1 Coax 50 Ohm
Weight (kg)   90
Windload at 130 km/h   1680 N / 2,10 m² / 22,58 feet²

Price ***   3.599,00 EUR
* = average gain over dipol in free-space / for comparison: 2 el monobander 4 dBd, 3 el 5-6 dBd
** = average gain at 20m above ground (= dBd + 2.15 dB isotropic + about 5 dB ground reflection)
*** = outside EU minus 19% tax - subject to change
