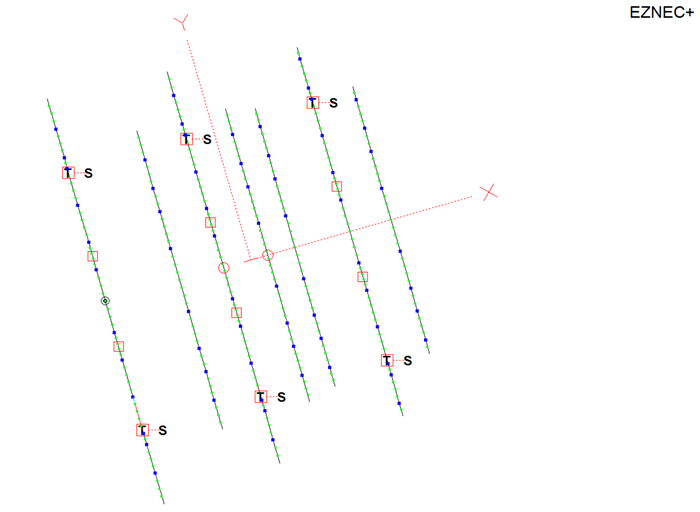

OB4020s mid size 7 Element Yagi 40/20m

OB4020s


Bands   40 / 20
Gain (dBd) *   4,5 / 6,3
Gain (dBi) **   11,1 / 13,6
F/B (dB)   18 / 23
VSWR
40 m general setting:
7,00 - 7,07 - 7,18   1,8 - 1,1 - 1,9
other specific settings possible
14,00 - 14,20 - 14,35   1,3 - 1,1 - 1,2

Elements (number)   7
Active Elements   3 / 4
Max. Elementlength (m)   14,90
Boomlength (m)   10,50
Turning Radius (m)   9,30
Feedlines (number)   2 Coax 50 Ohm
Weight (kg)   not yet calculated
Windload at 130 km/h   not yet calculated

Price ***   not yet calculated
* = average gain over dipol in free-space / for comparison: 2 el monobander 4 dBd, 3 el 5-6 dBd
** = average gain at 20m above ground (= dBd + 2.15 dB isotropic + about 5 dB ground reflection)
*** = outside EU minus 19% tax - subject to change
